Características y especificaciones:

• Two-piece precision offset thermoset molded reflector.
• Fine azimuth and elevation adjustments.
• Galvanized feed support arm and alignment struts.
• Factory pre-assembled mount.
• Galvanized and stainless hardware for maximum corrosion resistance.
• Available with a wide variety of C-Band and Ku-Band Rx-Tx feed assemblies and ODU mounting kits.

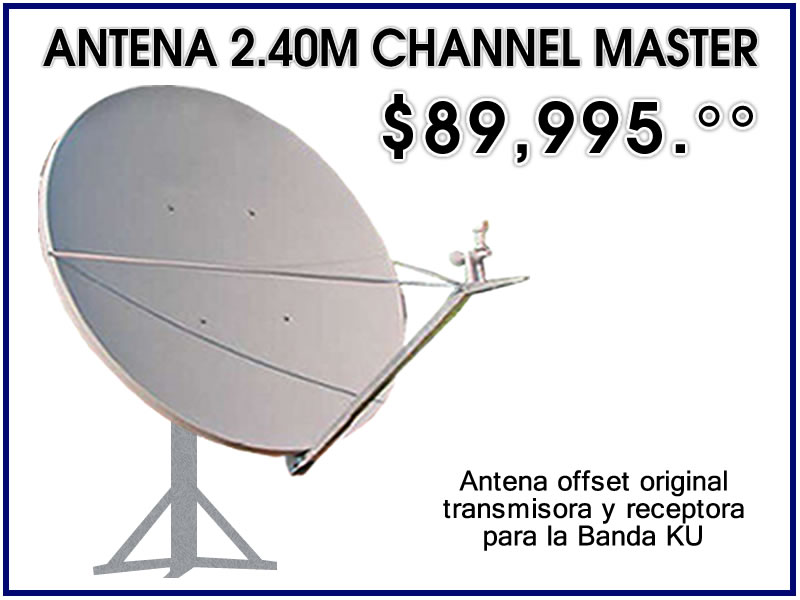

The Channel Master Type 243 2.4m Offset Rx-Tx Antenna is a rugged commercial grade product suitable for the most demanding applications. The two-piece reflector is thermoset-molded for strength and surface accuracy. Molded into the rear of each reflector half is a network of support ribs which not only strengthens the antenna, but also helps to sustain the critical parabolic shape necessary for transmit performance. The Az/El mount is constructed from heavy-gauge steel to provide a rigid support to the reflector and feed support arm. Heavy-duty lockdown bolts secure the mount to any 6.63 i n .O. D.mast to prevent slippage in high winds. Hot-dip galvanizing is standard for maximum environmental protection.
